Single Compression Cable Gland

Description
Inquiry Now >>

Product Description

Thread Size: PG Thread

Material: Brass with nickel plated

Product Certification: CE certification and ISO9001.

Protection Degree: IP68

Working temperature:  -40℃to 100℃short time to 120℃

Function: Single compression Brass Cable Gland for unarmored Cable, helps in providing electrical continuity between unarmored cable and gland entry component. Also, it provides a seal on the outer sheath of the cable, thus ensuring no damage to cable sheathing. It is used both in indoor and outdoor applications, in all climatic conditions, as these are weather proof and waterproof.

More options: Customization is acceptable.Welcome to inquire.

Single Compression Brass Cable Gland- PG Thread
Product Code Thread  AG Cable range(mm)

Thread O.D.

(mm)

Thread length GL

(mm)

Joint Length

(mm)

Spanner Size

(mm)

JX-PG7-SIN PG7 5-7 12.5 5 16.5 14/15
JX-PG9-SIN PG9 6-12 15.2 6.2 17.5 18/18
JX-PG11-SIN PG11 11-15 18.6 6.5 17.5 20/21
JX-PG13.5-SIN PG13.5 14-18 20.4 7.5 20.5 22/23
JX-PG16-SIN PG16 17-23 22.5 8 22.2 24/25
JX-PG21-SIN PG21 22-27 28.3 8 23.5 30/32
JX-PG29-SIN PG29 26-33 37 8 25.5 40/41
JX-PG36-SIN PG36 32-41 47 10 29 50/52
JX-PG42-SIN PG42 40-49 54 11 33 57/57
JX-PG48-SIN PG48 48-57 59.3 12 34 64/64

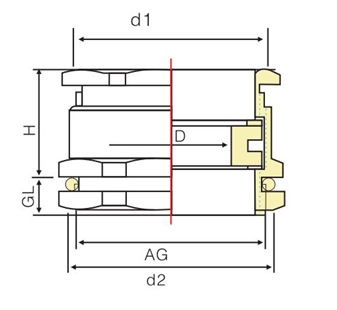

The Drawing of Single Compression Cable Gland:

Single Compression Cable Gland
