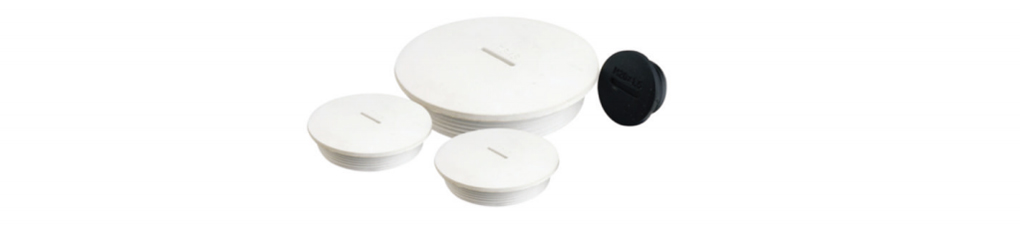

Nylon Screw Plug

Model

Thread O.D. AG(mm)

Thread Length GL(mm)

Main BodyO Dimensions H(mm)

Cover Dimensions D(mm)

Model

Thread O.D. AG(mm)

Thread Length GL(mm)

Main BodyO Dimensions H(mm)

Cover Dimensions D(mm)

JX-PG7-NSC

12.5

8.5

12.5

15

JX-M12-NSC

12

8.5

12.5

15

JX-PG9-NSC

15.2

8.5

13

19

JX-M16-NSC

16

8.5

13

19

JX-PG11-NSC

18.6

9

13

22

JX-M18-NSC

18

9

13

22

JX-PG13.5-NSC

20.4

9

13

25

JX-M20-NSC

20

9

13

25

JX-PG16-NSC

22.5

10.5

15

27

JX-M22-NSC

22

10.5

15

27

JX-M25-NSC

25

10.5

15.5

30

JX-PG21-NSC

28.3

10.5

15.5

33

JX-M27-NSC

27

10.5

15.5

33

JX-PG29-NSC

37

11.5

16

44

JX-M32-NSC

32

10.5

16

38

JX-PG36-NSC

47

13.5

18

55

JX-M40-NSC

40

11.5

16

46

JX-PG42-NSC

54

13.5

18.5

62

JX-M50-NSC

50

13.5

18

56

JX-PG48-NSC

59.3

14.5

19.5

68

JX-M63-NSC

63

14

19

68

Material: Nylon Pa66

Sealing material: Nitrile butadiene rubber(nbr), weathering resistance rubber(epdm)

Working temperature:-40°C to 100c in static state, short time to 120°C;

                                    -20°C to 80°C in dynamic state, short time tolOO°C

Protection degree:IP68(rotate the part, and use oring)

Color:black(ral9005), light grey(ral7035), as well as special colors that can be designed at request
