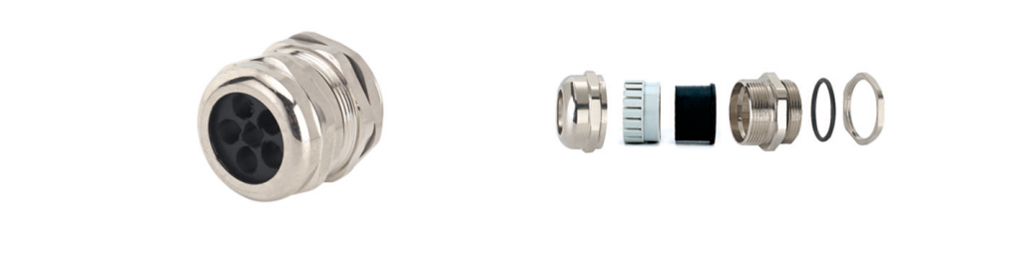

Brass Multiple Cable gland
Brass Multiple Cable gland

Brass Multiple Cable gland

Description

The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.

Inquiry Now >>

Product Description

Thread type: Metric, PG,G, NPT

Material: Brass, nickel plated Claw: PA Sealing and sealing ring: NBR.

Approvals: IP68.ISO9001、TUV

Protection degree: lP68

Temperature Resistance:--40°℃ to 100c, short time to 120°c.

Function:Extremely easy installation, simplyisert cable through the assembled gland and tighten gland lockout until cable is secured.these cable glands are designed to withstand water, dust, salt, acid-base, alcohol, oil and common solvent.

Variety of the Holes:Used for 2-8core cables, to make sure each wire to get the best waterproof insulation, and not intertwined.



Multiple type

Code

Thread



F

M2

M3

M4

M5

M6

M7

M8

JX-M12/*

M12×1.5

/

3-1.2

3-1.2

2.3-1

/

/

/

/

JX-M16/*

M16×1.5

/

4-1.6

4-1.6

2.3-1

2.5-1.0

2.0-1.0

/

/

JX-M18/*

M18×1.5

6×10

3.5-2

3.5-2

3-1.2

2.6-1.5

2.2-1

/

/

JX-M20/*

M20×1.5

5×11.5

5.3-1.5

5.3-1.5

4.2-1.7

3-1.2

3-1.2

3-1.2

3-1.2

JX-M22/*

M22×1.5

6×14

6-2.5

6-2.5

4.5-2

/

/

/

/

JX-M25/*

M25×1.5

6×14

8.7-4

8.7-4

5-2

3.5-1.5

3.5-1.5

3.5-1.5

3.5-1.5

JX-M27/*

M27×1.5

7×18

8.7-4.5

8.7-4.5

7-3.5

3.5-1.5

3.5-1.5

3.5-1.5

3.5-1.5

JX-M32/*

M32×1.5

8×22

10-5

10-5

9-4.5

8.0-4.0

7-3.5

6-3

/

Jx-PG7/*

PG7

/

3-1.2

3-1.2

2.3-1

/

/

/

/

Jx-PG9/*

PG9

/

4-1.6

4-1.6

2.3-1

2.5-1.0

2-1

/

/

Jx-PG11/*

PG11

6×10

3.5-2

3.5-2

3-1.2

2.6-1.5

2.2-1

/

/

JX-PG13.5/*

PG13.5

5×11.5

5.3-1.5

5.3-1.5

4.2-1.7

4.2-1.7

/

/

/

JX-PG16/*

PG16

6×14

6-2.5

6-2.5

4.5-2

/

/

/

/

JX-PG21/*

PG21

7×18

8.7-4.5

8.7-4.5

7-3.5

3.5-1.5

3.5-1.5

3.5-1.5

/

Jx-PG29/*

pG29

8×22

10-5

10-5

9-4.5

8.0-4.0

7-3.5

6-3

/

Jx-G1/2/*

G1/2

5×11.5

5.3-1.5

5.3-1.5

4.2-1.7

3-1.2

3-1.2

3-1.2

3-1.2

Jx-G3/4/*

G3/4

7×18

7×18

8.7-4.5

5-2

3.5-1.5

3.5-1.5

3.5-1.5

3.5-1.5

Jx-G1/*

G1

8×22

8×22

10-5

10-5

8.0-4.0

7-3.5

6-3

/
