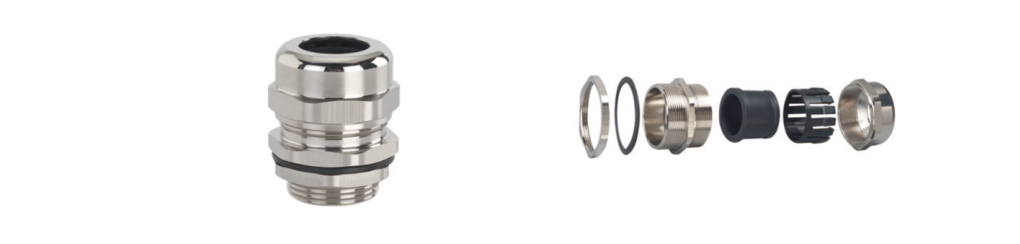

The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.
Inquiry Now >>
Thread: Metric, PG,G(PF), NPT thread;
Materials: Brass with nickel plated for A, F parts, Nylon PA66
EP DM rubber for B. Dparts,( Also accept to make super: resist high temperature rubber, resist strong acid/alkali, etc);
Protection degree: IP68-10 Bar;
Working temperature:-40°C tolOO°C in static state,or instantaneous heat resistance up tol20°C;
Features: The claws and seals of excellent design, sealing nut has a 'click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Metric thread type
|
(mm) Thread O.D |
Code |
(mm) Cable range |
(mm) Thread O.D |
(mm) Mounting hole diameter |
GL(mm) Thread length GL |
(mm) Spanner size |
| M12X1.5 |
JX-M12A-MG |
3-5.3 |
12 |
12-12.3 |
8 |
17/17 |
|
JX-M12B-MG |
4.5-7.8 |
12 |
12-12.3 |
8 |
17/17 |
|
|
M16X1.5 |
JX-M16A-MG |
4-7 |
16 |
16-16.3 |
9 |
22/22 |
|
JX-M16B-MG |
6-10 |
16 |
16-16.3 |
9 |
22/22 |
|
|
M20X1.5 |
JX-M20A-MG |
5-8.8 |
20 |
20-20.3 |
9.5 |
24/24 |
|
JX-M20B-MG |
7-12 |
20 |
20-20.3 |
9.5 |
24/24 |
|
|
JX-M20C-MG |
9-14 |
20 |
20-20.3 |
9.5 |
26/26 |
|
|
M25X1.5 |
JX-M25-MG |
12-16 |
25 |
25-25.4 |
12 |
32/32 |
|
M32X1.5 |
JX-M32A-MG |
16-22 |
32 |
32-32.4 |
12.5 |
41/41 |
|
JX-M32B-MG |
18-25 |
32 |
32-32.4 |
12.5 |
41/41 |
|
|
M40 x 1.5 |
JX-M40A-MG |
21-25 |
40 |
40-40.4 |
15 |
50/50 |
|
JX-M40B-MG |
24-30 |
40 |
40-40.4 |
15 |
50/50 |
|
|
M50 X 1.5 |
JX-M50A-MG |
26-32 |
50 |
50-50.4 |
15 |
60/60 |
|
JX-M50B-MG |
31-41 |
50 |
50-50.4 |
15 |
60/60 |
|
|
M63X1.5 |
JX-M63A-MG |
40-46 |
63 |
63-63.4 |
15 |
73/73 |
|
JX-M63B-MG |
44-51 |
63 |
63-63.4 |
15 |
73/73 |
|
|
M75X1.5 |
JX-M75A-MG |
50-56 |
75 |
75-75.6 |
15 |
85/88 |
|
JX-M75B-MG |
56-66 |
75 |
75-75.6 |
15 |
85/88 |
|
|
M90X1.5 |
JX-M90A-MG |
58-68 |
90 |
90-91 |
20 |
102/106 |
|
JX-M90B-MG |
66-77 |
90 |
90-91 |
20 |
102/106 |
|
|
M 100X1.5 |
JX-M100A-MG |
58-68 |
100 |
100-101 |
25 |
116/120 |
|
JX-M100B-MG |
66-77 |
100 |
100-101 |
25 |
116/120 |
PG thread type
|
(mm) Thread O.D |
Code |
(mm)Cable range |
(mm)ThreadO.D |
(mm)Mounting hole diameter |
(mm)Thread length GL |
(mm)Spanner size |
|
PG7 |
JX-PG7A-MG |
3-5.3 |
12.5 |
12.5-12.8 |
8 |
17/17 |
|
JX-PG7B-MG |
4.5・7.8 |
12.5 |
12.5-12.8 |
8 |
17/17 |
|
|
PG9 |
JX-PG9A-MG |
3-5.8 |
15.2 |
15.2-15.5 |
8 |
18/18 |
|
JX-PG9B-MG |
4.5-7.8 |
15.2 |
15.2-15.5 |
8 |
18/18 |
|
|
PG11 |
JX-PG11A-MG |
4-7 |
18.6 |
18.6-18.9 |
9 |
22/22 |
|
JX-PG11B-MG |
6-10 |
18.6 |
18.6-18.9 |
9 |
22/22 |
|
|
PG13.5 |
JX-PG13.5A-MG |
5-8.8 |
20.4 |
20.4-20.7 |
9.5 |
24/24 |
|
JX-PG13.5B-MG |
7-12 |
20.4 |
20.4-20.7 |
9.5 |
24/24 |
|
|
PG16 |
JX-PG16A-MG |
7-11 |
22.5 |
22.5-22.8 |
9.5 |
26/26 |
|
JX-PG16B-MG |
9-14 |
22.5 |
22.5-22.8 |
9.5 |
26/26 |
|
|
PG21 |
JX-PG21A-MG |
12-16 |
28.3 |
28.3-28.7 |
12 |
32/32 |
|
JX-PG21B-MG |
14-18 |
28.3 |
28.3-28.7 |
12 |
32/32 |
|
|
PG29 |
JX-PG29A-MG |
16-22 |
37 |
37-37.4 |
12.5 |
41/41 |
|
JX-PG29B-MG |
18-25 |
37 |
37-37.4 |
12.5 |
41/41 |
|
|
PG36 |
JX-PG36A-MG |
21-25 |
47 |
47-47.4 |
15 |
50/50 |
|
JX-PG36B-MG |
24-30 |
47 |
47-47.4 |
15 |
50/50 |
G Thread type、NPT Thread type
|
(mm) Thread O.D |
Code |
(mm) Cable range |
(mm) Thread O.D |
(mm) Mounting hole diameter |
GL(mm) Thread length GL |
(mm) Spanner size |
|
Gl/4 " |
JX-G1/4A-MG |
3-5.3 |
13.157 |
13.2-13.4 |
8 |
17/17 |
|
JX-G1/4B-MG |
4.5-7.8 |
13.157 |
13.2-13.4 |
8 |
17/17 |
|
|
G3/8 " |
JX-G3/8A-MG |
4-7 |
16.662 |
16.7-16.9 |
9 |
22/22 |
|
JX-G3/8B-MG |
6-10 |
16.662 |
16.7-16.9 |
9 |
22/22 |
|
|
G1/2 " |
JX-G1/2A-MG |
7-11 |
20.955 |
21-21.2 |
9.5 |
26/26 |
|
JX-G1/2B-MG |
9-14 |
20.955 |
21-21.2 |
9.5 |
26/26 |
|
|
G3/4 " |
JX-G3/4A-MG |
12-16 |
26.441 |
26.5-26.8 |
12 |
32/32 |
|
JX-G3/4B-MG |
14-18 |
26.441 |
26.5-26.8 |
12 |
32/32 |
|
|
G1" |
JX-G1A-MG |
16-22 |
33.249 |
33.3-33.6 |
12.5 |
41/41 |
|
JX-G1-MG |
18-25 |
33.249 |
33.3-33.6 |
12.5 |
41/41 |
|
|
G11/4 " |
JX-G11/4A-MG |
21-25 |
41.91 |
42-42.3 |
15 |
50/50 |
|
JX-G11/4B-MG |
24-30 |
41.91 |
42-42.3 |
15 |
50/50 |
|
|
G11/2 " |
JX-G11/2A-MG |
26-32 |
47.803 |
48-48.4 |
15 |
60/60 |
|
JX-G11/2B-MG |
31-41 |
47.803 |
48-48.4 |
15 |
60/60 |
|
|
G2 " |
JX-G2A-MG |
40-46 |
59.614 |
60-60.4 |
15 |
73/73 |
|
JX-G2B-MG |
44-51 |
59.614 |
60-60.4 |
15 |
73/73 |
|
|
G21/2 " |
JX-G2 1/2A-MG |
50-56 |
75.184 |
75.2-75.6 |
18 |
85/88 |
|
JX-G2 1/2B-MG |
66-56 |
75.184 |
75.2-75.6 |
18 |
85/88 |
|
|
NPT3/8 " |
JX-NPT3/8A-MG |
4-7 |
17.055 |
|
13 |
22 |
|
JX-NPT3/8B-MG |
6-10 |
17.055 |
|
13 |
22 |
|
|
NPT1/2" |
JX-NPT1/2A-MG |
7-11 |
21.223 |
|
13 |
26 |
|
JX-NPT1/2B-MG |
9-14 |
21.223 |
|
13 |
26 |
|
|
NPT3/4 " |
JX-NPT3/4A-MG |
12-16 |
26.568 |
|
14 |
32 |
|
JX-NPT3/4B-MG |
14-18 |
26.568 |
|
14 |
32 |
|
|
NPT1 " |
JX-NPT1A-MG |
16-22 |
33.227 |
|
15 |
41 |
|
JX-NPT1B-MG |
18-25 |
33.227 |
|
15 |
41 |
|
|
NPT1 1/4 " |
JX-NPT11/4A-MG |
21-25 |
41.984 |
|
15 |
50 |
|
JX-NPT11/4B-MG |
240-30 |
41.984 |
|
15 |
50 |
