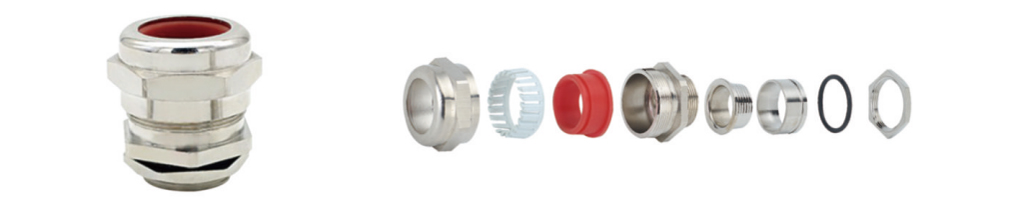

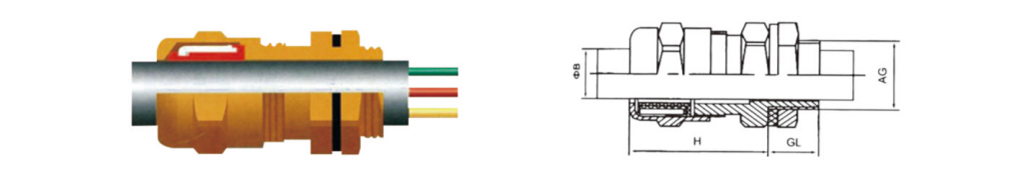

JX-1 single seal, explosion-proof Cable Gland
Amored cable connectoy, also known as ground shield connector, morecommonly said is armored cable that is buried power cables,power line transmission cables and equipment as a common connection point industry
Features:
1.Maintain inherent mechanical properties in high-risk locations.
2.For armored cable design, whether it is steel wire armored, woven armored,jacket armored can be quickly installed;
3.Suitable for heavy duty places,high sealing,high tensile, double-layer reinforcement, single-layeramored fastening, effectively provide product service life;
Features:
1.Fast and effective fastening and sealing.
2.Suitable for pre-sheathed clamping and sealing, making explosion-proof performance more superior;
3.Used in explosion-proof equipment, motor, electical boy , it double-layer tightseal single-layer armor tight, more reliable, more with a higher load-bearing capacity and high sealing performance.
JX-1 single seal, explosion-proof Cable Gland
|
Thre.d（M，tric） |
Treand（NPT/G） |
Cable range |
Hmm |
Lmm |
Hexagonal size |
|||||
|
Thread |
Metric Series Code |
Thread |
NPT Series Code |
G Series Code |
Bmm |
Amm |
Across flats |
Across corners |
||
|
M16*1.5 |
JX-08-M16 |
3/8" |
JX-08-NPT3/8 |
JX-08-G3/8 |
5-8 |
3-6 |
30 |
12 |
24 |
28 |
|
JX-10-M16 |
JX-10-NPT3/8 |
JX-10-G3/8 |
6-10 |
4-8 |
30 |
12 |
24 |
28 |
||
|
M20*1.5 |
JX-14-M20 |
1/2" |
JX-14-NPT1/2 |
JX-14-G1/2 |
9-14 |
6-11 |
30 |
12 |
24 |
28 |
|
JX-16-M20 |
JX-16-NPT1/2 |
JX-16-G1/2 |
10-16 |
7-12 |
30 |
12 |
24 |
28 |
||
|
JX-18-M20 |
JX-18-NPT1/2 |
JX-18-G1/2 |
13-18 |
9-14 |
32 |
12 |
30 |
35 |
||
|
M25*1.5 |
JX-21-M25 |
3/4" |
JX-21-NPT3/4 |
JX-21-G3/4 |
15-21 |
11-17 |
35 |
13 |
36 |
42 |
|
JX-24-M25 |
JX-24-NPT3/4 |
JX-24-G3/4 |
17-24 |
13-20 |
35 |
13 |
40 |
47 |
||
|
M32*1.5 |
JX-28-M32 |
1" |
JX-28-NPT1 |
JX-28-G1 |
20-28 |
16-23 |
39 |
15 |
46 |
53 |
|
JX-K2-M32 |
JX-32-NPT1 |
JX-32-G1 |
23-32 |
18-26 |
39 |
15 |
46 |
53 |
||
|
M40*1.5 |
JX-35-M40 |
11/4" |
JX-35-NPT11/4 |
JX-35-G11/4 |
26-35 |
21-29 |
43 |
15 |
55 |
64 |
|
JX-38-M40 |
JX-38-NPT11/4 |
JX-38-G11/4 |
31-38 |
25-32 |
43 |
15 |
55 |
64 |
||
|
M50*1.5 |
JX-41-M50 |
11/2" |
JX-41-NPT11/2 |
JX-41-G11/2 |
34-41 |
28-35 |
48 |
15 |
65 |
75 |
|
JX-44-M50 |
JX-44-NPT11/2 |
JX-44-G11/2 |
37-44 |
31-38 |
48 |
15 |
65 |
75 |
||
|
M63*1.5 |
JX-50-M63 |
2" |
JX-50-NPT2 |
JX-50-G2 |
40-50 |
33-43 |
53 |
16 |
80 |
92 |
|
JX-55-M63 |
JX-55-NPT2 |
JX-55-G2 |
43-55 |
36-47 |
53 |
16 |
80 |
92 |
||
|
M75*1.5 |
JX-63-M75 |
21/2" |
JX-63-NPT21/2 |
JX-63-G2 |
50-63 |
42-53 |
58 |
16 |
96 |
111 |
|
JX-68-M75 |
JX-68-NPT21/2 |
JX-68-G21/2 |
54-68 |
45-58 |
58 |
16 |
96 |
111 |
||
|
M88*2 |
JX-72-M88 |
3" |
JX-72-NPT3 |
JX-72-G3 |
62-72 |
52-62 |
64 |
18 |
114 |
134 |
|
JX-79-M88 |
JX-79-NPT3 |
JX-79-G3 |
67-79 |
56-67 |
64 |
18 |
114 |
134 |
||
|
M110,2 |
JX-89-M110 |
4" |
JX-89-NPT4 |
JX-89-G4 |
78-89 |
65-75 |
70 |
18 |
128 |
148 |
|
JX-105-M110 |
JX-105-NPT4 |
JX-105-G4 |
38-104.5 |
74-91 |
70 |
18 |
138 |
148 |
||
