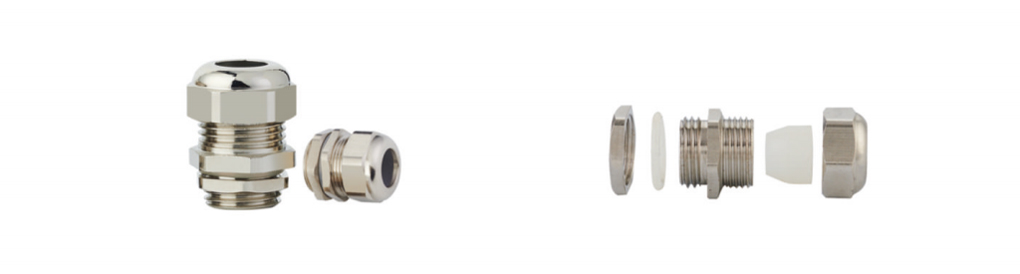

The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.
Inquiry Now >>
Silicon rubber insert type
Material::Brass, nickel plated
Claw: Silicon rubber
Sealing ring: Silicon rubber
Approvals: IP68、IS09006。
Temperature Resistance: -60°C to+250 °C.
Application: For the wire connecting for automotive/marine equipment, lighting equipment, refrigeration and air conditioning, household appliances and measuring equipment, also for the outdoor wires connecting during the severe environment.
|
Code |
Thread AG |
Cable range (mm) |
Thread O.D.(mm) |
(mm) Mounting hole diameter |
(mm) Thread length GL |
Joint length (mm) |
(mm) Spannersize |
|
JX-M8-SI |
M8X1 |
5.5-2 |
8 |
8-8.2 |
5 |
16 |
12 |
|
JX-M12A-SI |
M12X1 |
6.5-3 |
12 |
12-12.2 |
7 |
19 |
14 |
|
JX-M12B-SI |
M 12X1.25 |
8-3 |
12 |
12-12.2 |
7 |
16 |
16 |
|
JX-M12C-SI |
M12X1.5 |
8-3 |
12 |
12-12.2 |
7 |
16 |
16 |
|
JX-M14-SI |
M 14X1.5 |
8-3 |
14 |
14-14.2 |
7 |
16 |
16 |
|
JX-M16-SI |
M16X1.5 |
9-4 |
16 |
16-16.2 |
8 |
20 |
20/18 |
|
JX-M18-SI |
M18X1.5 |
10-5 |
18 |
18-18.2 |
8 |
20 |
20 |
|
JX-M20-SI |
M20X1.5 |
12-8 |
20 |
20-20.2 |
8 |
21 |
24 |
|
JX-M25-SI |
M25X1.5 |
18-15 |
25 |
25-25.2 |
9 |
23 |
30 |
|
JX-M32-SI |
M32X1.5 |
22-18 |
32 |
32-32.2 |
10 |
26 |
35 |
|
JX-M40-SI |
M40X1.5 |
30-25 |
40 |
40-40.2 |
11 |
30 |
45 |
|
JX-M50-SI |
M50X1.5 |
38-35 |
50 |
50-50.2 |
12 |
32 |
55 |
|
JX-M63-SI |
M63X1.5 |
44-38 |
63 |
63-63.2 |
13 |
35 |
68 |
We are cable gland manufacturer, we have our own workers and terminal block factory.
We have been more than 10 years' Professional terminal block production experience.
We professional produce various types of terminal block:SEK series Screw Terminal Block, SUK series Screw Terminal Block, JF5 series Screw Terminal Block, SN series Screw Terminal Block, ST3 series Spring Terminal Block to clients' needs.
Our factory is located in yueqing city,zhejiang province, China. Our local airport is wenzhou yongqiang airport.
The nearest international airport is shanghai pudong airport.
about 40 minutes by plane from shanghai (4 hours by train)
